Overexpressed histone acetyltransferase 1 regulates cancer immunity by increasing programmed death-ligand 1 expression in pancreatic cancer
Journal of Experimental & Clinical Cancer Research volume 38, Article number: 47 (2019)
Abstracts
Background
Pancreatic ductal adenocarcinoma is one of the leading causes of cancer-related death worldwide. Immune checkpoint blockade therapy, including anti-PD-1 and anti-PD-L1, is a new therapeutic strategy for cancer treatment but the monotherapy with PD-L1 inhibitors for pancreatic cancer is almost ineffective for pancreatic cancer. Thus, exploring the regulatory mechanism of PD-L1 in cancer cells, especially in pancreatic cancer cells, is one of the key strategies to improving cancer patient response to PD-L1 blockade therapy. Histone acetyltransferase 1(HAT1) is a classic type B histone acetyltransferase and the biological role of HAT1 in pancreatic cancer is unclear.
Methods
The clinical relevance of HAT1 was examined by the GEPIA web tool, Western blotting and immunohistochemistry of pancreatic cancer tissue microarray slides. Tumor cell motility was investigated by MTS assay, colony formation assay and xenografts. The relationship between HAT1 and PD-L1 was examined by Western blot analysis, RT-qPCR and immunohistochemistry.
Results
HAT1 was upregulated in PDAC and associated with poor prognosis in PDAC patients. The knockdown of HAT1 decreased the proliferation of pancreatic cancer cells in vivo and in vitro. Strikingly, we showed that HAT1 transcriptionally regulated PD-L1, and this process was mainly mediated by BRD4 in pancreatic cancer. The knockdown of HAT1 improved the efficacy of immune checkpoint blockade by decreasing the PD-L1.
Conclusions
The recognition of HAT1 in regulating tumor cell proliferation and cancer immunity indicated that HAT1 might be employed as a new diagnostic and prognostic marker and a predictive marker for pancreatic cancer therapy, especially in immune checkpoint blockade therapy. Targeting HAT1 highlights a novel therapeutic approach to overcome immune evasion by tumor cells.
Background
Pancreatic ductal adenocarcinoma (PDAC) is one of the leading causes of cancer-related death worldwide [1]. Resistance to chemotherapy and radiotherapy results in the poor prognosis of PDAC [2]. Immunotherapy is a new therapeutic strategy for cancer treatment and has made a profound progress in prolonging the survival time patients with of various types of tumors [3]. However, the immunotherapy is almost ineffective for pancreatic cancer [4]. Therefore, exploring the underlying mechanisms is urgently needed to overcome the resistance to immunotherapy in pancreatic cancer.
Tumors evade immune surveillance by the aberrant activation of inhibitory pathways that regulate the function of T lymphocytes, known as immune checkpoints [5]. Programmed death-ligand 1 (PD-L1, B7-H1) is a member of the B7 family of cell surface ligands on cancer cells surfaces, which binds the programmed death-1 protein (PD-1) receptor to induce T cell apoptosis and inhibit cytotoxic T-cell activation within cancer tissues [6,7,8,9]. Given that the blockade of the PD-1/PD-L1 interaction can reactivate T-cell responses, a few anti-PD-1 and anti-PD-L1 antibodies have been approved for the treatment of human cancers in the clinic [10]. However, monotherapy with PD-L1 inhibitors for pancreatic cancer has resulted in disappointing outcomes in clinical trials [11]. A growing body of evidence suggests that the expression level of PD-L1 in cancer cells is highly associated with the response to immune checkpoint therapies [12]. Thus, exploring the regulatory mechanism of PD-L1 in cancer cells, especially in pancreatic cancer cells, is one of the key strategies to improve cancer patient response to PD-L1 blockade therapy.
Histone acetyltransferase 1 (HAT1) is a classic type B histone acetyltransferase, and it can only acetylate newly synthesized histone H4 and not nucleosomal histone [13].HAT1 was the first histone acetyltransferase identified and is one of the most poorly understood members of this family [13]. HAT1 is overexpressed in multiple types of solid tumors, including esophageal [14], lung cancer [15] and liver cancer [16], and acts as an oncoprotein to promote tumorigenesis. It has been reported that HAT1 functions as a transcription factor to regulate the expression of various genes, such as Bcl2L12 [17] and Fas [15], and modulates cancer cell proliferation [16], apoptosis [15] and metabolism [16].
To date, the biological effect and clinical relevance of HAT1 in pancreatic cancer is poorly understood. In this study, we sought to determine the specific role of HAT1 in pancreatic cancer. First of all, we demonstrated that HAT1 was overexpressed in pancreatic cancer and linked with poor prognosis in PDAC patients. Then, our data showed that HAT1 acted as a tumor growth promoting protein in pancreatic cancer cells. Strikingly, HAT1 was involved in the cancer immunity response by regulating the PD-L1 expression, and this process was mainly mediated by BRD4. Taken together, our results demonstrate that aberrant expression of HAT1 promotes tumorigenesis by modulating the cancer cell growth and the immune response in pancreatic cancer.
Materials and methods
Cell culture
All pancreatic cancer cell lines including PANC-1, BxPC-3 and MIA PaCa-2 were purchased from the Chinese Academy of Science Cell Bank, and the Panc 02 cells were obtained from Tong Pai Technology (Shanghai, China). These cell lines were cultured in Dulbecco’s Modified Eagle Medium (DMEM) medium (Invitrogen, USA) supplemented with 10% fetal bovine serum (FBS) (HyClone, USA). All cell lines were routinely maintained at 37 °C in a 5% CO2 incubator.
Plasmids, antibodies and chemicals
Mammalian expression vectors for Flag-HAT1 recombinant proteins were generated using the pcDNA3.1 backbone vector. The HAT1 antibody (ab194296) was purchased from Abcam (working dilution 1:2000); beta-tubulin (2128S) was from Cell Signaling Technology - (working dilution 1:5000); BRD4 (ab128874) was from Abcam (working dilution 1:1000); PD-L1 (13684S) was from Cell Signaling Technology (working dilution 1:1000); and H4K5ac (ab17343) was from Abcam (working dilution 1:1000). Ascorbate was purchased from Sigma-Aldrich (Shanghai, China).
Western blot of cells and tissue specimens
The ethics of using human tissue (12 pairs of matched pancreatic cancer/adjacent noncancerous tissues) was approved by the local ethics committee (Tongji Medical College, China), and written informed consent was obtained from patients prior to surgery exactly as described previously [18]. The cells or the tissue specimens were lysed with lysis buffer (Beyotime, China) containing 1% protease and phosphatase inhibitors. The protein concentration was determined with a protein assay kit (Pierce Biotechnology, USA). Equal amounts of protein for each sample were separated using SDS-PAGE gels and transferred onto PVDF membranes (Pierce Biotechnology, USA). The membranes were subsequently blocked in 5% not-fat milk for 1 h at room temperature, followed by incubation with primary antibody overnight at 4 °C. The membranes were then washed with 1x TBST and incubated with a secondary antibody for 1 h. Finally, the membranes were treated with ECL detection reagents and exposed to X-ray films.
Real-time RT-PCR
Total RNA was extracted from the cells using Trizol reagent (Thermo Fisher Scientific, USA). First strand cDNA was synthesized from 2 μg RNA using a cDNA Reverse Transcription kit (PrimeScript™ RT reagent Kit, Code No. RR037A), and real-time PCR analysis was carried out with a PCR kit (TB Green™ Fast qPCR Mix, Code No. RR430A) according to the manufacturer’s protocols. The two kits were purchased from Takara Bio Inc. (Shigo, Japan). All the values were normalized to actin, and the 2-ΔCt method was used to quantify the fold change. The primers used for RT-qPCR are provided in Additional file 1: Table S1.
Chromatin immunoprecipitation (ChIP) and ChIP-qPCR
ChIP was performed following the manufacturer’s instructions for the Chromatin Extraction Kit (Abcam, ab117152, USA) and ChIP Kit Magnetic - One Step (Abcam, ab156907, USA) [19]. BRD4 (Cell Signaling Technology, 13,440, dilution 1:50) was used for the ChIP assay. The purified DNA was analyzed by real-time PCR with a PCR kit (Takara Bio Inc., Japan) according to the manufacturer’s protocols [20]. The primers for ChIP-qPCR are provided in Additional file 1: Table S2.
Tissue microarray and immunohistochemistry (IHC)
The tissue microarray slides were purchased from Outdo Biobank (Shanghai, China) (HPan-Ade060CD-01). The tissue microarray specimens were immunostained with PD-L1 (Cell Signaling Technology, 13,684, dilution 1: 1000) and HAT1 antibodies (Abcam, ab194296, dilution 1:3000) as described previously. Staining intensity was scored in a blinded fashion: 1 = weak staining at 100× magnification but little or no staining at 40× magnification; 2 = medium staining at 40× magnification; 3 = strong staining at 40× magnification [21]. The degree of immunostaining was reviewed and scored by two independent pathologists who were blinded to the clinical details. The scores were determined by the percentage of positive cells multiplied by the staining intensity.
RNA interference
The lentivirus-based control and gene-specific shRNAs were purchased from Sigma-Aldrich. Lipofectamine 2000 was used to transfect 293 T cells with shRNA plasmids and viral packaging plasmids (pVSV-G and pEXQV). Twenty-four hours after transfection, the medium was replaced with fresh DMEM, containing 10% FBS and 1 mM of sodium pyruvate. Next, 48 h post transfection, the virus culture medium was collected and added to the PANC-1, MIA PaCa-2 and BxPC-3 cells supplemented with 12 μg/ml of polybrene. Twenty-four hours after infection, the infected cells were selected with 10 μg /ml of puromycin. The shRNA sequence information is provided in Additional file 1: Table S3.
The pTsin lentiviral expression vector was used to generate lentiviral plasmids for pTsin-Flag-HAT1. Lipofectamine 2000 was used to transfect 293 T cells with the pTsin expression plasmid and viral packaging plasmids (pHR’ CMVδ 9.8 and pVSV-G). Twenty-four hours after transfection, the medium was replaced with fresh DMEM, containing 10% FBS and 1 mM of sodium pyruvate. Next, 48 h post transfection, the virus culture medium was collected and added to PANC-1 cells supplemented with 12 μg/ml of polybrene. Twenty-four hours after infection, the infected cells were selected with 10 μg/ml of puromycin.
Cell proliferation assay
Cell viability was evaluated using the MTS (3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium, inner salt) assay according to the manufacturer’s instructions (Abcam, USA). Briefly, the pancreatic cancer cells (1 × 103 cells) were seeded in 96-well plates with 100 μl of culture medium. The cells were treated with serial concentrations of small molecular inhibitors. After 72 h, 20 μl of MTS reagent (Abcam, USA) was added to each well of the cells and incubated for 1 h at 37 °C in standard culture conditions. The absorbance was measured in a microplate reader at 490 nm.
Generation of PDAC xenografts in nude mice
The BALB/c-nu mice (4–5 weeks of age, 18–20 g) were purchased from Vitalriver (Beijing, China) and randomly divided into two groups (n = 7/group) for the subcutaneous inoculation with 5 × 106 of PANC-1 cells infected with shControl or shHAT1 lentivirus in the left dorsal flank of the mice. The tumors were examined every other day for 21 days; the length and width measurements were obtained with calipers to calculate the tumor volumes by using the eq. (L x W2)/2. On day 21, the animals were euthanized, and the tumors were excised and weighed. All the animal experimental procedures were approved by the Ethics Committee of Tongji Medical College, Huazhong University of Science and Technology.
Survival analysis and correlation analysis using the GEPIA web tool
The online database Gene Expression Profiling Interactive Analysis (GEPIA, http://gepia.cancerpku.cn/index.html.) [22] was used to analyze the RNA sequencing expression data related to our project based on The Cancer Genome Atlas (TCGA) and the Genotype-Tissue Expression (GTEx) projects. GEPIA performs survival analyses based on gene expression levels and uses a log-rank test for hypothesis evaluation. GEPIA performs a pairwise gene correlation analysis for any given set of TCGA and/or GTEx expression data using Pearson correlation statistics.
Generation and treatment of Panc 02 xenografts in mice
Six-week-old C57BL/6 mice were purchased from Charles River Laboratories (Wuhan, China). All the animal experimental procedures were approved by the Ethics Committee of Tongji Medical College, Huazhong University of Science and Technology. Panc 02 cells (5 × 106 in 100 μl 1 × PBS) infected with shControl or shHAT1 lentivirus were injected s.c. into the right flank of mice. The volume of xenografts was measured every other day and calculated using the formula LxW2x0.5. After the xenografts reached a size of approximately 50 mm3, mice carrying similar types of tumors were randomized into different groups and treated with anti-PD-1 (BioXcell, Clone RMP1–14)/IgG (BioXcell, Clone 2A3) (200 μg, i.p., given at days 0, 3, 6); or anti-PD-L1 (BioXcell, Clone 10F.9G2)/IgG (BioXcell, Clone MPC-11) (200 μg, i.p., given at days 0, 3, 6). Mice were euthanized and tumors were collected from all animals once the tumors reached a volume of 200 mm3.
Flow cytometry analysis
The PANC-1, MIA PaCa-2 and BxPC-3 cells infected with control or HAT1-specific shRNAs were harvested and washed with PBS. Cells were fixed in 4% paraformaldehyde for 15 min. After washing with PBS, cells were incubated with ice-cold 100% methanol for 30 min on ice. Cells were washed with PBS and incubated with PD-L1 antibody (Biolegend, APC anti-human CD274, clone 29E.2A3) or isotype IgG (Biolegend,APC anti-human IgG Fc Antibody, clone HP6017) for 15 min at room temperature. After washing three times with PBS, the cells were resuspended in PBS and analyzed by flow cytometry.
For flow cytometry analysis of the mouse tissue samples, the tumors were cut into small pieces and digested with 2 mg/ml collagenase (Sigma, USA) in DMEM for 1 h at 37 °C. Cells were filtered through a 70 μm nylon strainer and resuspended in red blood cell lysis buffer (Biolegend) for 3 min at room temperature. The cells were then suspended in PBS with 2% BSA and costained with the following antibodies: CD45 (Biolegend, 103,112, APC conjugated); CD4 (Biolegend, 100,510, FITC conjugated); CD8 (Biolegend, 100,708, PE conjugated); CD11b (Biolegend,101,212, APC conjugated); and Gr1 ((Biolegend, 108,406, FITC conjugated)). After incubation with antibody for 15 min, the cells were washed with PBS and analyzed by flow cytometry.
Statistical analysis
Statistical analyses were performed with one-sided or two-sided paired Student’s t-test for single comparison and one-way ANOVA with a post hoc test for multiple comparisons. A P value < 0.05 was considered statistically significant. All the values are expressed as the mean ± SD.
Results
HAT1 is up-regulated in PDAC and associated with poor prognosis in PDAC patients
To investigate the expression level of HAT1 in pancreatic cancer, we first analyzed HAT1 mRNA levels in pancreatic cancer and nontumor pancreatic tissues by using the GEPIA web tool [22]. We found that the mRNA levels of HAT1 in pancreatic cancer tissues were higher than in nontumor pancreatic tissues (Fig. 1a). Then, we sought to determine the HAT1 protein levels in human PDAC specimens via using the TMA (tissue microarray) approach. We examined the protein level of the HAT1 by immunohistochemistry (IHC) in PDAC specimens obtained from a cohort of patients (n = 25 normal pancreatic specimens, n = 41 PDAC TMA specimens). The IHC staining score was evaluated by measuring both the percentage of cells that stained positive for the marker and the staining intensity [20]. We showed that HAT1 was significantly overexpressed in PDAC specimens compared with normal pancreatic tissues (Fig. 1b and c). Similarly, we examined the protein level in PDAC and paired adjacent nontumor pancreatic tissues in our hospital via Western blot analysis and demonstrated that HAT1 was upregulated in PDAC compared to adjacent non-tumor pancreatic tissues (Fig. 1d and e). To further identify the clinical relevance of HAT1 in pancreatic cancer, the survival rate of PDAC patients associated with HAT1 expression was determined through GEPIA web tool and The Human Protein Atlas. Our data indicated that the high expression of HAT1 was closely correlated with poor prognosis in PDAC patients (Fig. 1f-g). Together, these data suggest that HAT1 is upregulated in PDAC and associated with poor prognosis in PDAC patients.

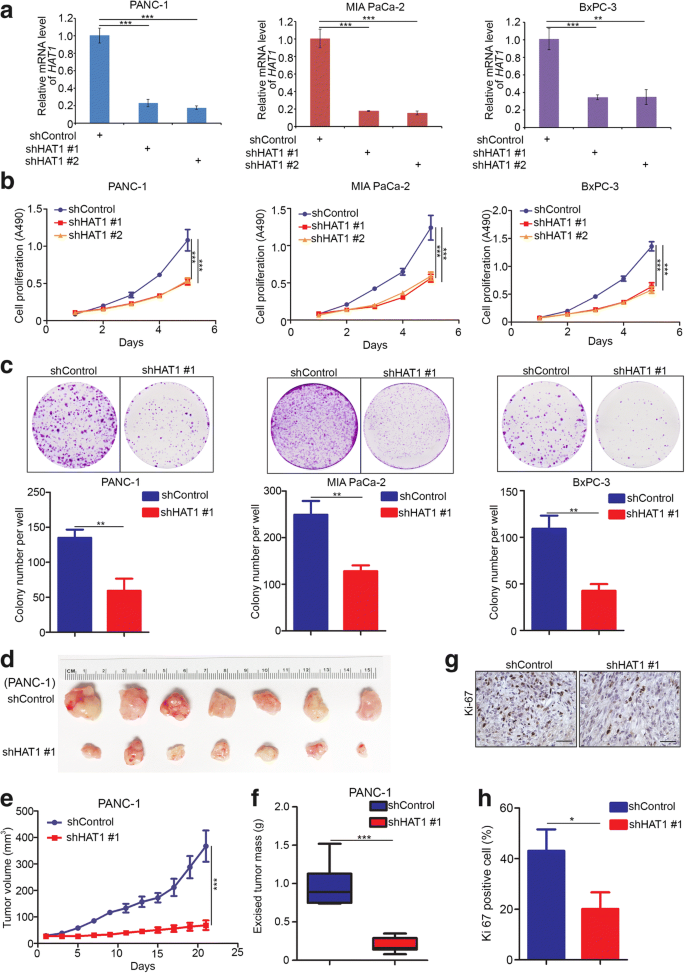

HAT1 promotes cell proliferation in pancreatic cancer in vivo and in vitro
Given that HAT1 functioned as a negative prognostic biomarker in PDAC, we wanted to explore the specific role of HAT1 in pancreatic cancer. First, we knocked down HAT1 with a specific lentiviral short hairpin RNA in PANC-1, MIA PaCa-2 and BxPC-3 cells (Fig. 2a). The MTS assay and colony formation assay indicated that the knock down of HAT1 significantly impeded the cell growth of the PANC-1, MIA PaCa-2 and BxPC-3 cells (Fig. 2b and c). On the other hand, we also found that the overexpression of HAT1 promoted the proliferation of PANC-1 and BxPC-3 cells (Additional file 1: Figure S1a and b). The above data were consistent with the data reported for liver, nasopharyngeal and lung cancer cells [15,16,17]. Moreover, to investigate the role of HAT1 in the tumor growth of PDAC in vivo, PANC-1 cells infected with control or HAT1-specific shRNAs were injected subcutaneously into the right flank of nude mice for the xenograft assay. We found that the knockdown of HAT1 blocked the growth of PANC-1 xenografts in mice (Fig. 2d-f). Then, xenografts were subjected to IHC analysis for Ki-67 expression, the most commonly used indicator to evaluate cell proliferation (Fig. 2g). We found that the knockdown of HAT1 resulted in a decrease in Ki-67 staining compared with the control group (Fig. 2h). Furthermore, the PANC-1 cells infected with pTsin-EV or pTsin-Flag-HAT1 used to establish the control or HAT1-overexpressing pancreatic cancer stable cell lines, respectively, were injected subcutaneously into the right flank of nude mice for the xenograft assay. Our data demonstrated that overexpressed HAT1 promoted pancreatic cancer growth in vivo (Additional file 1: Figure S1c-e). Taken together, our findings indicate that HAT1 acts as a growth promoting protein in pancreatic cancer.
HAT1 transcriptionally increases PD-L1 expression in pancreatic cancer cells
Since HAT1 was upregulated in PDAC and promoted cell proliferation in pancreatic cancer cells, the more biological role of HAT1 needs to be explored. It has been documented that PD-L1 was inversely correlated with prognosis in pancreatic cancer [23]. Given the poorly understood nature of its regulation [24], we sought to determine whether HAT1 is involved in PD-L1 regulation. Strikingly, the knockdown of HAT1 decreased the protein and mRNA expression of PD-L1 in the PANC-1, MIA PaCa-2 and BxPC-3 cells (Fig. 3a-c). Conversely, using a gain of function approach, we demonstrated that the ectopic expression of HAT1 led to the up-regulation of PD-L1 expression in both PANC-1 and MIA PaCa-2 cells (Fig. 3d and e). A recent study reported that HAT1 was downregulated by ascorbate through the TET-mediated DNA hydroxymethylation pathway [25]. Similarly, the ascorbate treatment decreased the protein and mRNA levels of both PD-L1 and HAT1 in the PANC-1 and BxPC-3 cells (Fig. 3f and g). Then, we sought to examine whether the effect of ascorbate on PD-L1 expression is mediated by HAT1 or not. The ascorbate treatment decreased PD-L1 expression, and this effect was diminished after HAT1 knockdown in BxPC-3 cells (Fig. 3h and i), which indicated that HAT1 played a key role in modulating the ascorbate-induced PD-L1 down-regulation of PD-L1. Taken together, our findings indicated that HAT1 upregulated PD-L1 expression at the transcriptional level.
PD-L1 is positively correlated with HAT1 in PDAC patient specimens
To further investigate the relationship between PD-L1 and HAT1, we analyzed the mRNA levels of PD-L1 (CD274) and HAT1 in a subset of pancreatic cancer patients (Fig. 4a) [26]. Intriguingly, we found that the overexpression of PD-L1 (CD274) was accompanied by the upregulation of HAT1 (p < 0.05) (Fig. 4a). Then, we analyzed the correlation of the mRNA level between PD-L1 and HAT1 using the GEPIA web tool. Our results indicated that PD-L1 mRNA is positively correlated with HAT1 mRNA in pancreatic cancer patient specimens (Pearson’s product-moment correlation coefficient r = 0.47, p = 4.4e-11) (Fig. 4b). To further determine the correlation between HAT1 and PD-L1 in pancreatic cancer specimens, we examined the expression of these two proteins by performing immunohistochemistry (IHC) on a tissue microarray (TMA) containing a cohort of pancreatic cancer samples (n = 41). The IHC staining index (SI) was calculated by multiplying the percentage of positively stained cells and the staining intensity. Representative images of high and low/no staining of HAT1 and PD-L1 are shown in Fig. 4c. The PD-L1 expression was positively correlated with the HAT1 level (Pearson’s product-moment correlation coefficient r = 0.4776, p = 0.0016) (Fig. 4d), which was consistent with the mRNA level correlation reported above. Together, our results suggest that PD-L1 is positively correlated with HAT1 in PDAC patient specimens.

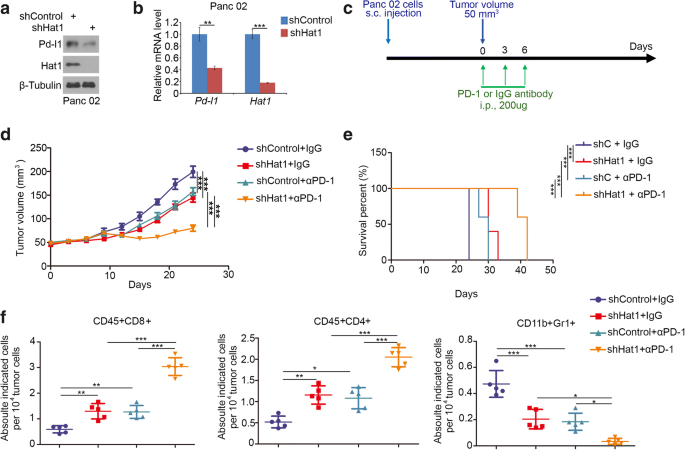

Knockdown of HAT1 improves the efficacy of immune checkpoint blockade by decreasing the PD-L1 expression in vivo
As described above, HAT1 regulated PD-L1 expression in human pancreatic cancer cells. We sought to examine this phenomenon in vivo. First, we knocked down of Hat1 in the murine pancreatic cancer cell line Panc 02 and showed that reducing the Hat1 resulted in decreasing the Pd-l1 (Fig. 5a and b). These results suggest that the knockdown of Hat1 may enhance the immune checkpoint blockade efficacy in pancreatic cancer therapy. To test this hypothesis, Panc 02 cells infected with shControl or shHat1 lentivirus were injected subcutaneously into immune-proficient mice. Panc 02 tumor-bearing mice were sham-treated or treated with anti-PD-1 antibody or nonspecific control IgG as indicated in Fig. 5c. Consistent with the previous results in human pancreatic cancer cells (Fig. 2), the knockdown of Hat1 slowed down the cells proliferation of murine pancreatic cancer cells in vivo (Fig. 5d and e). In agreement with the observation that Pd-l1 protein was detectable in Panc 02 cells (Fig. 5a), the anti-PD-1-antibody treatment impeded tumor growth and prolonged the survival time of tumor-bearing mice (Fig. 5d and e). Furthermore, the knockdown of Hat1 significantly increased tumor infiltration of immune effectors including CD45+CD8+ T cells and CD45+CD4+ T cells, but decreased the infiltration of CD11b+Gr1+ myeloid cells in tumors (Fig. 5f). In agreement with the effect on tumor regression, treatment with the anti-PD-1-antibody after the knockdown of Hat1 led to a further decrease in tumor growth and an increase in CD45+CD8+ and CD45+CD4+ T cell infiltration, but a greater decrease in CD11b+Gr1+ myeloid cells in tumors (Fig. 5f). Therefore, our findings indicate that the knockdown of HAT1 improves the efficacy of immune checkpoint blockade by decreasing the PD-L1 expression and in vivo.
HAT1 increases PD-L1 expression through BRD4 in pancreatic cancer cells
Although HAT1 transcriptionally increased PD-L1 expression, but the underlying mechanism is not fully understood. It has been documented that various transcriptional factors, such as STAT3, MYC, p65 and BRD4, could directly bind to the promoter of PD-L1 and regulate the transcription of PD-L1 in cancer cells. Moreover, HAT1 catalyzes the acetylation of H4K5 and H4K12, which is essential for BRD4 binding to the histone H4 and initiating the transcription. Herein, we hypothesized that BRD4 was the key protein that mediates the HAT1-induced PD-L1 expression. To test this hypothesis, we knocked down HAT1 in PANC-1 cells and treated them with or without the BRD4 inhibitors JQ1 (Fig. 6a and b). We found that the knockdown of HAT1 repressed PD-L1 expression and that these effects were diminished by JQ1 treatment (Fig. 6a and b). Similarly, the knockdown of the HAT1 induced PD-L1 downregulation was not significant after the knockdown of BRD4 in PANC-1 cells (Fig. 6c and d). Conversely, the ectopic expression of HAT1 significantly increased the PD-L1 expression, but these effects were not apparent after the knockdown of BRD4 in PANC-1 cells (Fig. 6e and f). Notably, just as reported by other groups, we checked the existing BRD4 ChIP-seq data [27] and noticed that there is a BRD4 binding peak in the promoter of the PD-L1 gene (Fig. 6g). Thus, we confirmed the binding of BRD4 by ChIP-qPCR in PANC-1 cells (Fig. 6h). Consistently, JQ1 prevented BRD4 binding to the promoter of PD-L1 and abolished the effect of the HAT1 knockdown-induced reduction in BRD4 binding to the PD-L1 promoter (Fig. 6h). Collectively, these data suggest that HAT1 catalyzes the histone H4 acetylation and that the BRD4 complex binds to the acetylated H4 to initiate the transcription of PD-L1 (Fig. 6i).
Discussion
Histone acetyltransferases (HATs) and histone deacetylases (HDACs) influence DNA transcription through the balance between histone acetylation and deacetylation [28]. HAT1 acetylates newly synthesized histone H4 but not nucleosomal histones and regulates the genes involved in cell differentiation, proliferation, cell metabolism and apoptosis [14,15,16]. HAT1 plays a critical role in the tumorigenesis of digestive system cancer. It has been well documented that HAT1 is an important determinant in the regulation of the proliferation of esophageal and liver cancer cells in vivo and in vitro [14, 16]. Moreover, HAT1 is overexpressed in multiple types of cancer and associated with poor prognosis [29]. In this study, we demonstrate that HAT1 is upregulated and highly correlated with poor prognosis in pancreatic cancer specimens. The aberrant expression of HAT1 participates in promoting tumor cell growth in pancreatic cancer.
The nonimmunogenic characteristics of pancreatic cancer are responsible for the failure of immunotherapy. Only a small portion of pancreatic cancer patient specimens were positive for PD-L1, representing the best candidates for PD-L1 blockade therapy. However, monotherapy with PD-L1 blockade has no effect on the survival time of pancreatic cancer patients. Given that the expression level of PD-L1 plays a key role in determining the efficacy of anti-PD-L1 therapy, understanding the regulatory mechanism of PD-L1 in cancer cells sheds new light on the exploration of novel therapy strategies for cancer treatment. Recent studies showed that various transcriptional factors, including BRD4 [30], MYC [31], p65 [32] and STAT3 [33], could directly bind to the PD-L1 promoter and initiate PD-L1 transcription. Moreover, RAS signaling is involved in regulating the mRNA stabilization of PD-L1 in cancer cells [34]. Furthermore, beyond the mRNA level regulation, it has been documented that the E3 ligase, SPOP [12], β-TrCP [35], and the deubiquitinase CSN5 [36] participate in modulating the stability of PD-L1 through the proteasome pathway. In addition, the transmembrane proteins, CMTM4 and CMTM6, stabilize the PD-L1 protein via the lysosome pathway [37, 38]. In our study, we demonstrate that HAT1 is a novel regulator of PD-L1 at the transcriptional level and that BRD4 might be an important mediator of this process.
Our data indicated that the knockdown of HAT1 blocked pancreatic cancer tumor growth (Fig. 2), but the overexpression of HAT1 promoted the tumor growth in vivo (Additional file 1: Figure S1). Our results further showed that HAT1 regulated PD-L1 expression in pancreatic cancer (Fig. 3), and PD-L1 has been reported to promote tumor cell growth not only via immune effects but also through tumor cell-intrinsic signals, including the regulation of autophagy and the mTOR pathway [39]. Therefore, HAT1 might regulate cancer cell proliferation via PD-L1. It has been well documented that HAT1 could regulate the function of BRD4 or increase the acetylation level of histones to influence the expression of a number of genes involved in apoptosis and glucose metabolism [15, 16, 25], which was critical for the cell viability and not involved in the PD-L1 effect. Therefore, PD-L1 is partially responsible for promoting the pancreatic cancer cell growth induced by HAT1 in vivo, and this is confirmed by our results in Additional file 1: Figure S2.
Our data indicated that HAT1 increased the PD-L1 expression in vivo and in vitro, which identifies HAT1 as a previously unrecognized master regulator of this critical immune checkpoint. However, there is no small molecular inhibitor to specifically target HAT1. Recent studies have indicated that ascorbate represses the HAT1 expression via the TET-mediated DNA hydroxymethylation pathway [25]. Our findings suggest that ascorbate could suppress PD-L1 expression by influencing the HAT1 level in pancreatic cancer cells. Although ascorbate is not a the specific inhibitor of HAT1, it may regulate PD-L1 expression through other pathways. These data also suggest that ascorbate might be a potential new avenue to overcome immune evasion by tumor cells.
Conclusions
In summary, we proposed a new understanding of the specific role of HAT1 in pancreatic cancer. We showed that HAT1 is overexpressed in pancreatic cancer specimens and highly correlated with poor prognosis in pancreatic cancer. Furthermore, our results suggested that HAT1 promoted cell proliferation in pancreatic cancer cells. In particular, we demonstrated that HAT1 functioned as an important regulator in cancer immunity via transcriptionally upregulating the PD-L1 level in tumor cells. The recognition of HAT1 in the regulation of PD-L1 expression suggests that HAT1 might be employed as a new diagnostic and prognostic marker and as a predictive marker for pancreatic cancer therapy, especially in immune checkpoint blockade therapy. Targeting HAT1 highlights a novel therapeutic target to overcome immune evasion by tumor cells.
Abbreviations
- ChIP:
-
Chromatin immunoprecipitation
- HAT1:
-
Histone acetyltransferase 1
- IHC:
-
immunohistochemistry
- MTS:
-
3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium, inner salt; TMA: tissue microarray
- PDAC:
-
Pancreatic ductal adenocarcinoma
- PD-L1:
-
Programmed death-ligand 1
References
Moyer MT, Gaffney RR. Pancreatic adenocarcinoma. N Engl J Med. 2014;371:2140.
Garrido-Laguna I, Hidalgo M. Pancreatic cancer: from state-of-the-art treatments to promising novel therapies. Nat Rev Clin Oncol. 2015;12:319–34.
Torphy RJ, Zhu Y, Schulick RD. Immunotherapy for pancreatic cancer: barriers and breakthroughs. Ann Gastroenterol Surg. 2018;2:274–81.
Foucher ED, Ghigo C, Chouaib S, Galon J, Iovanna J, Olive D. Pancreatic ductal adenocarcinoma: a strong imbalance of good and bad immunological cops in the tumor microenvironment. Front Immunol. 2018;9:1044.
Hanahan D, Weinberg RA. Hallmarks of cancer: the next generation. Cell. 2011;144:646–74.
Dong H, Zhu G, Tamada K, Chen L. B7-H1, a third member of the B7 family, co-stimulates T-cell proliferation and interleukin-10 secretion. Nat Med. 1999;5:1365–9.
Dong H, Strome SE, Salomao DR, Tamura H, Hirano F, Flies DB, Roche PC, Lu J, Zhu G, Tamada K, et al. Tumor-associated B7-H1 promotes T-cell apoptosis: a potential mechanism of immune evasion. Nat Med. 2002;8:793–800.
Freeman GJ, Long AJ, Iwai Y, Bourque K, Chernova T, Nishimura H, Fitz LJ, Malenkovich N, Okazaki T, Byrne MC, et al. Engagement of the PD-1 immunoinhibitory receptor by a novel B7 family member leads to negative regulation of lymphocyte activation. J Exp Med. 2000;192:1027–34.
Ishida Y, Agata Y, Shibahara K, Honjo T. Induced expression of PD-1, a novel member of the immunoglobulin gene superfamily, upon programmed cell death. EMBO J. 1992;11:3887–95.
Socinski MA, Jotte RM, Cappuzzo F, Orlandi F, Stroyakovskiy D, Nogami N, Rodriguez-Abreu D, Moro-Sibilot D, Thomas CA, Barlesi F, et al. Atezolizumab for first-line treatment of metastatic nonsquamous NSCLC. N Engl J Med. 2018;378:2288–301.
Brahmer JR, Tykodi SS, Chow LQ, Hwu WJ, Topalian SL, Hwu P, Drake CG, Camacho LH, Kauh J, Odunsi K, et al. Safety and activity of anti-PD-L1 antibody in patients with advanced cancer. N Engl J Med. 2012;366:2455–65.
Zhang J, Bu X, Wang H, Zhu Y, Geng Y, Nihira NT, Tan Y, Ci Y, Wu F, Dai X, et al. Cyclin D-CDK4 kinase destabilizes PD-L1 via cullin 3-SPOP to control cancer immune surveillance. Nature. 2018;553:91–5.
Makowski AM, Dutnall RN, Annunziato AT. Effects of acetylation of histone H4 at lysines 8 and 16 on activity of the Hat1 histone acetyltransferase. J Biol Chem. 2001;276:43499–502.
Xue L, Hou J, Wang Q, Yao L, Xu S, Ge D. RNAi screening identifies HAT1 as a potential drug target in esophageal squamous cell carcinoma. Int J Clin Exp Pathol. 2014;7:3898–907.
Han N, Shi L, Guo Q, Sun W, Yu Y, Yang L, Zhang X, Zhang M. HAT1 induces lung cancer cell apoptosis via up regulating Fas. Oncotarget. 2017;8:89970–7.
Jin X, Tian S, Li P. Histone acetyltransferase 1 promotes cell proliferation and induces cisplatin resistance in hepatocellular carcinoma. Oncol Res. 2017;25:939–46.
Miao BP, Zhang RS, Yang G, Sun JJ, Tang YY, Liang WF, Liu T, Wen Z, Yang PC, Nie GH. Histone acetyltransferase 1 up regulates Bcl2L12 expression in nasopharyngeal cancer cells. Arch Biochem Biophys. 2018;646:72–9.
Wang B, Fan P, Zhao J, Wu H, Jin X, Wu H. FBP1 loss contributes to BET inhibitors resistance by undermining c-Myc expression in pancreatic ductal adenocarcinoma. J Exp Clin Cancer Res. 2018;37:224.
Fan P, Wang B, Meng Z, Zhao J, Jin X. PES1 is transcriptionally regulated by BRD4 and promotes cell proliferation and glycolysis in hepatocellular carcinoma. Int J Biochem Cell Biol. 2018;104:1–8.
Jin X, Yan Y, Wang D, Ding D, Ma T, Ye Z, Jimenez R, Wang L, Wu H, Huang H. DUB3 promotes BET inhibitor resistance and Cancer progression by deubiquitinating BRD4. Mol Cell. 2018;71:592–605 e594.
Jin X, Pan Y, Wang L, Zhang L, Ravichandran R, Potts PR, Jiang J, Wu H, Huang H. MAGE-TRIM28 complex promotes the Warburg effect and hepatocellular carcinoma progression by targeting FBP1 for degradation. Oncogenesis. 2017;6:e312.
Tang Z, Li C, Kang B, Gao G, Li C, Zhang Z. GEPIA: a web server for cancer and normal gene expression profiling and interactive analyses. Nucleic Acids Res. 2017;45:W98–W102.
Feng M, Xiong G, Cao Z, Yang G, Zheng S, Song X, You L, Zheng L, Zhang T, Zhao Y. PD-1/PD-L1 and immunotherapy for pancreatic cancer. Cancer Lett. 2017;407:57–65.
Wartenberg M, Cibin S, Zlobec I, Vassella E, Eppenberger-Castori S, Terracciano L, Eichmann MD, Worni M, Gloor B, Perren A, Karamitopoulou E. Integrated genomic and Immunophenotypic classification of pancreatic Cancer reveals three distinct subtypes with prognostic/predictive significance. Clin Cancer Res. 2018;24(18):4444–454.
Mustafi S, Camarena V, Volmar CH, Huff TC, Sant DW, Brothers SP, Liu ZJ, Wahlestedt C, Wang G. Vitamin C Sensitizes Melanoma to BET Inhibitors. Cancer Res. 2018;78:572–83.
Notta F, Chan-Seng-Yue M, Lemire M, Li Y, Wilson GW, Connor AA, Denroche RE, Liang SB, Brown AM, Kim JC, et al. A renewed model of pancreatic cancer evolution based on genomic rearrangement patterns. Nature. 2016;538:378–82.
Zhang P, Wang D, Zhao Y, Ren S, Gao K, Ye Z, Wang S, Pan CW, Zhu Y, Yan Y, et al. Intrinsic BET inhibitor resistance in SPOP-mutated prostate cancer is mediated by BET protein stabilization and AKT-mTORC1 activation. Nat Med. 2017;23:1055–62.
Yang X, Li L, Liang J, Shi L, Yang J, Yi X, Zhang D, Han X, Yu N, Shang Y. Histone acetyltransferase 1 promotes homologous recombination in DNA repair by facilitating histone turnover. J Biol Chem. 2013;288:18271–82.
Min SK, Koh YH, Park Y, Kim HJ, Seo J, Park HR, Cho SJ, Kim IS. Expression of HAT1 and HDAC1, 2, 3 in diffuse large B-cell lymphomas, peripheral T-cell lymphomas, and NK/T-cell lymphomas. Korean J Pathol. 2012;46:142–50.
Zhu H, Bengsch F, Svoronos N, Rutkowski MR, Bitler BG, Allegrezza MJ, Yokoyama Y, Kossenkov AV, Bradner JE, Conejo-Garcia JR, Zhang R. BET Bromodomain inhibition promotes anti-tumor immunity by suppressing PD-L1 expression. Cell Rep. 2016;16:2829–37.
Casey SC, Tong L, Li Y, Do R, Walz S, Fitzgerald KN, Gouw AM, Baylot V, Gutgemann I, Eilers M, Felsher DW. MYC regulates the antitumor immune response through CD47 and PD-L1. Science. 2016;352:227–31.
Maeda T, Hiraki M, Jin C, Rajabi H, Tagde A, Alam M, Bouillez A, Hu X, Suzuki Y, Miyo M, et al. MUC1-C induces PD-L1 and immune evasion in triple-negative breast Cancer. Cancer Res. 2018;78:205–15.
Sasidharan Nair V, Toor SM, Ali BR, Elkord E. Dual inhibition of STAT1 and STAT3 activation downregulates expression of PD-L1 in human breast cancer cells. Expert Opin Ther Targets. 2018;22:547–57.
Coelho MA, de Carne Trecesson S, Rana S, Zecchin D, Moore C, Molina-Arcas M, East P, Spencer-Dene B, Nye E, Barnouin K, et al: Oncogenic RAS signaling promotes tumor Immunoresistance by stabilizing PD-L1 mRNA. Immunity 2017, 47:1083–1099 e1086.
Li CW, Lim SO, Xia W, Lee HH, Chan LC, Kuo CW, Khoo KH, Chang SS, Cha JH, Kim T, et al. Glycosylation and stabilization of programmed death ligand-1 suppresses T-cell activity. Nat Commun. 2016;7:12632.
Lim SO, Li CW, Xia W, Cha JH, Chan LC, Wu Y, Chang SS, Lin WC, Hsu JM, Hsu YH, et al. Deubiquitination and stabilization of PD-L1 by CSN5. Cancer Cell. 2016;30:925–39.
Mezzadra R, Sun C, Jae LT, Gomez-Eerland R, de Vries E, Wu W, Logtenberg MEW, Slagter M, Rozeman EA, Hofland I, et al. Identification of CMTM6 and CMTM4 as PD-L1 protein regulators. Nature. 2017;549:106–10.
Burr ML, Sparbier CE, Chan YC, Williamson JC, Woods K, Beavis PA, Lam EYN, Henderson MA, Bell CC, Stolzenburg S, et al. CMTM6 maintains the expression of PD-L1 and regulates anti-tumour immunity. Nature. 2017;549:101–5.
Clark CA, Gupta HB, Sareddy G, Pandeswara S, Lao S, Yuan B, Drerup JM, Padron A, Conejo-Garcia J, Murthy K, et al. Tumor-intrinsic PD-L1 signals regulate cell growth, pathogenesis, and autophagy in ovarian Cancer and melanoma. Cancer Res. 2016;76:6964–74.
Acknowledgements
Not applicable.
Funding
This work was supported in part by grants from the Chinese National Natural Science Foundation Grant No. 81702374.
Availability of data and materials
Please contact the author for data requests.
Author information
Authors and Affiliations
Contributions
PF and JZ performed the experiments and wrote the paper, ZM, HW and BW collected the data. XJ and HW wrote the paper and analyzed the data. All authors read and approved the final manuscript.
Corresponding authors
Ethics declarations
Ethics approval and consent to participate
The study was conducted in accordance with the principles of the Declaration of Helsinki principles. It was approved by the Animal Use and Care Committees at Tongji Medical College, Huazhong University of Science and Technology.
Consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interest.
Publisher’s Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Additional file
Additional file 1:
Overexpressed histone acetyltransferase 1 regulates cancer immunity by increasing programmed death-ligand 1 expression in pancreatic cancer. (PDF 544 kb)
Rights and permissions
Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
About this article
Cite this article
Fan, P., Zhao, J., Meng, Z. et al. Overexpressed histone acetyltransferase 1 regulates cancer immunity by increasing programmed death-ligand 1 expression in pancreatic cancer. J Exp Clin Cancer Res 38, 47 (2019). https://doi.org/10.1186/s13046-019-1044-z
Received:
Accepted:
Published:
DOI: https://doi.org/10.1186/s13046-019-1044-z
